Digital Battery Passport

BM-TRAC-48

Industrial/non-stationary battery · ACME

https://dpp.biberware-team.de/id/06EZ1A11T759
Chemistry
Li-ion LFP
Mass
480kg
Carbon class
B
Manufactured
2025
BM-TRAC-48

Product Data

General product specifications, manufacturer details and operational information

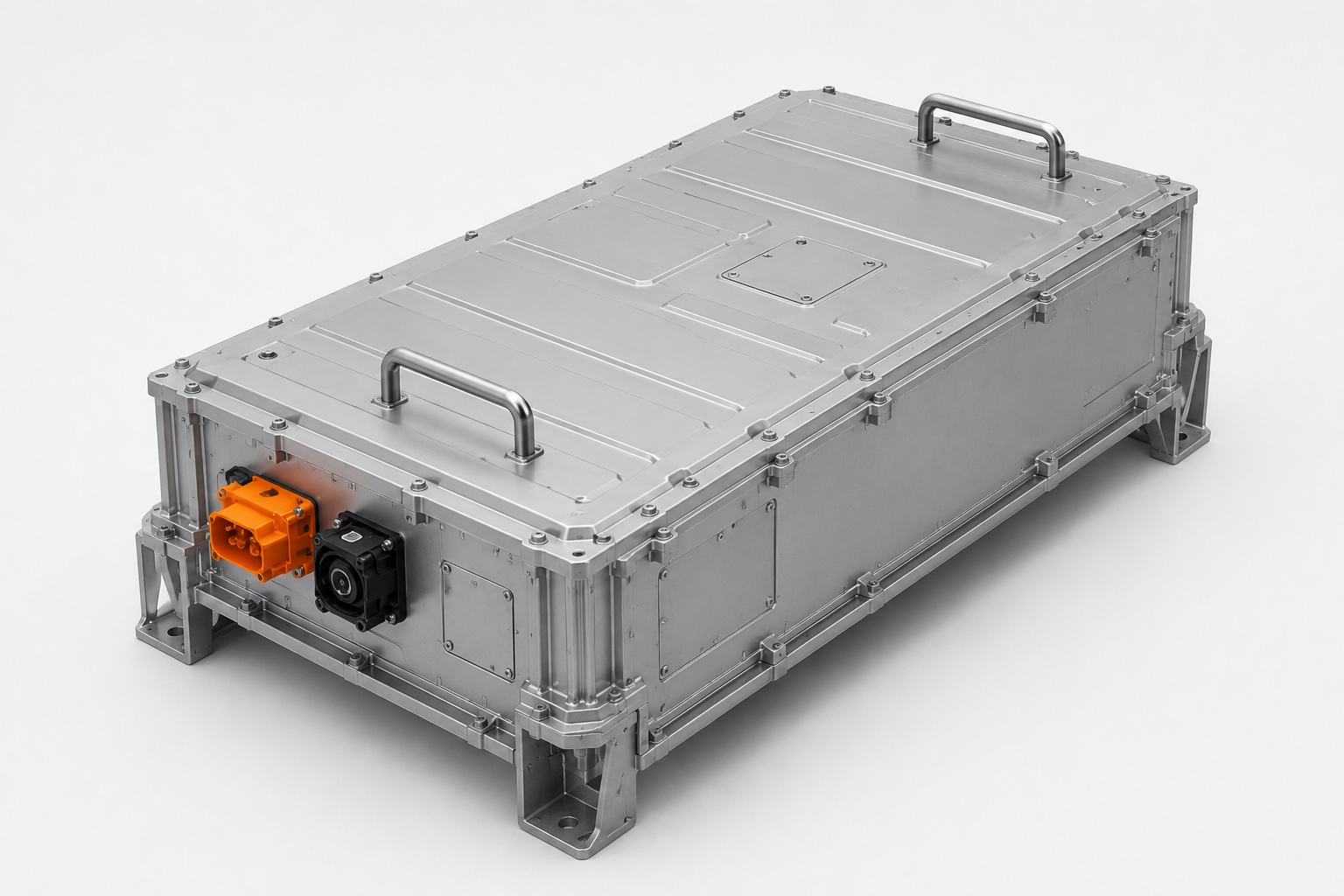

Forklift traction battery, 80 V / 600 Ah (48 kWh) LFP, 480 kg, replaces a lead-acid pack in three-shift warehouse operation.

Category
Industrial/non-stationary battery
Mass
480 kg
Model
BM-TRAC-48
Serial number
SN-BAT-TRAC-2025-002
Manufacturing date
10.02.2025
Warranty until
10.02.2035
Manufacturer
Acme Batteries GmbH
Economic operator
Acme Batteries GmbH
Manufacturing place
Industriestraße 42, 45128, DE
Passport status
Active
Granularity
Item
Last updated
12.10.2026
Schema version
battery-pass-ready@v1
13 fields disclosed
5 fields hidden

Carbon Footprint

The carbon footprint of the battery calculated based on the entire lifecycle.

Per functional unit
59.38 kgCO2-eq/kWh
Absolute footprint
2,850 kgCO2-eq
Performance class
B
Public study
Open document

Lifecycle breakdown

Performance

Key performance metrics and technical specifications of the battery.

Capacity & energy

Rated capacity
600 Ah
Initial round trip energy efficiency
92 %
Round-trip efficiency at 50 % of cycle life
91 %

Electrical

Nominal voltage
80 V
Minimum voltage
64 V
Maximum voltage
87.6 V
Original power capability (at 80 % SoC)
48,000 W
Original power capability (at 20 % SoC)
38,400 W
Maximum permitted battery power
48,000 W
Power-to-energy ratio
1 W/Wh
Initial internal resistance
1 Ohm

Lifetime & test conditions

Expected cycles
5,000
Cycle-life reference test
Open document
C-rate of cycle-life test
0.5 A/Ah

Temperature

Idle temperature, lower
-10 °C
Idle temperature, upper
50 °C
16 fields disclosed
13 fields hidden

Material Composition

Information about the battery chemistry, materials, and hazardous substances.

Battery chemistry
Li-ion LFP
Hazardous substances
No substances of very high concern present at or above 0.1 % w/w.
Impact on health & environment
No substances of very high concern declared; no associated hazard statements apply.

Critical raw materials

LithiumNatural graphite
4 fields disclosed
1 field hidden

Circularity

Information about recycling, spare parts, and end-of-life handling.

Renewable content
38%

Percentage of renewable materials used

Recycled content

MaterialPre-consumer sharePost-consumer share
Nickel6 %12 %
Cobalt8 %16 %
Lithium25 %20 %
Lead–50 %

End-of-life information

Waste prevention
Open document
Separate collection
Open document
Second life & treatment
Open document
7 fields disclosed
4 fields hidden

Labels

Compliance documentation and regulatory labels for this battery.

EU declaration of conformity
Open document
Separate collection

Separate collection

Industrial battery, take-back through the manufacturer, never household waste

Cadmium & lead

Cadmium & lead

Symbol for cadmium, shown where cadmium is present above 0.002 % by weight

Carbon footprint

Carbon footprint

Carbon footprint label - lifecycle CO2e per functional unit and performance class

Extinguishing agent

Fire class D
Class D fire extinguisherDry chemical powder
4 fields disclosed
1 field hidden

Supply Chain

Overview of supply chain due diligence, third-party assurances, and indices.

Due diligence report
Open document

Third-party assurances

Supply chain indices
Supply Chain Transparency Index: 85
