Logo

Digital Battery Passport

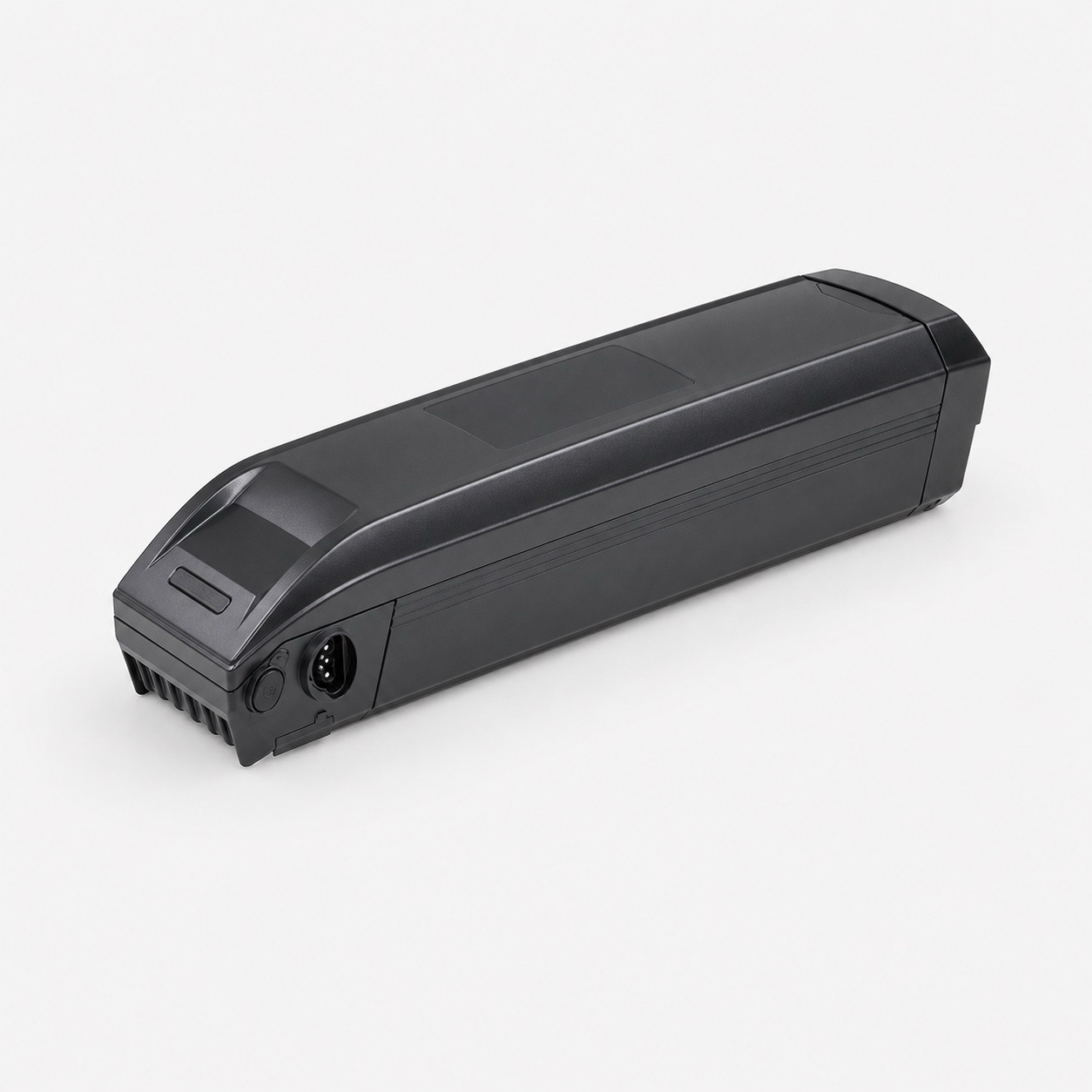

BM-EBIKE-504

LMT battery · ACME

urn:batterypass:BAT-EBIKE-2026-003
Chemistry
Li-ion NMC
Mass
3.2kg
Carbon class
A
Manufactured
2026
BM-EBIKE-504

Product Data

General product specifications, manufacturer details and operational information

Removable e-bike battery, 36 V / 14 Ah (504 Wh), 3.2 kg, for pedelecs up to 25 km/h.

Category
LMT battery
Mass
3.2 kg
Model
BM-EBIKE-504
Serial number
SN-BAT-LMT-2026-003
Manufacturing date
10.03.2026
Warranty until
10.03.2031
Manufacturer
Acme Batteries GmbH
Economic operator
Acme Batteries GmbH
Manufacturing place
Industriestraße 42, 45128, DE
Passport status
Active
Granularity
Item
Last updated
03.09.2026
Schema version
battery-pass-ready@v1
13 fields disclosed
5 fields hidden

Carbon Footprint

The carbon footprint of the battery calculated based on the entire lifecycle.

Per functional unit
90 kgCO2-eq/kWh
Absolute footprint
45 kgCO2-eq
Performance class
A
Public study
/api/assets/WdQCa6WBPMsr3dw-bqHzSQ

Lifecycle breakdown

Performance

Key performance metrics and technical specifications of the battery.

Capacity & energy

Rated capacity
14 Ah
Initial round trip energy efficiency
93 %
Round-trip efficiency at 50 % of cycle life
92 %

Electrical

Nominal voltage
36 V
Minimum voltage
30 V
Maximum voltage
42 V
Original power capability (at 80 % SoC)
500 W
Original power capability (at 20 % SoC)
400 W
Maximum permitted battery power
500 W
Power-to-energy ratio
1 W/Wh
Initial internal resistance
1 Ohm

Lifetime & test conditions

Expected cycles
800
Cycle-life reference test
/api/assets/WdQCa6WBPMsr3dw-bqHzSQ
C-rate of cycle-life test
0.5 A/Ah

Temperature

Idle temperature, lower
-10 °C
Idle temperature, upper
45 °C
16 fields disclosed
23 fields hidden

Material Composition

Information about the battery chemistry, materials, and hazardous substances.

Battery chemistry
Li-ion NMC
Hazardous substances
No substances of very high concern present at or above 0.1 % w/w.
Impact on health & environment
No substances of very high concern declared; no associated hazard statements apply.

Critical raw materials

LithiumCobaltNatural graphite
4 fields disclosed
1 field hidden

Circularity

Information about recycling, spare parts, and end-of-life handling.

Renewable content
30%

Percentage of renewable materials used

Recycled content

MaterialPre-consumer sharePost-consumer share
Nickel6 %12 %
Cobalt8 %16 %
Lithium4 %6 %
Lead–8 %

End-of-life information

Waste prevention
/api/assets/WdQCa6WBPMsr3dw-bqHzSQ
Separate collection
/api/assets/WdQCa6WBPMsr3dw-bqHzSQ
Second life & treatment
/api/assets/WdQCa6WBPMsr3dw-bqHzSQ
7 fields disclosed
4 fields hidden

Labels

Compliance documentation and regulatory labels for this battery.

EU declaration of conformity
/api/assets/WdQCa6WBPMsr3dw-bqHzSQ
Separate collection

Separate collection

Do not dispose of with household waste, return to a collection point

Cadmium & lead

Cadmium & lead

Symbol for lead, shown where lead is present above 0.004 % by weight

Carbon footprint

Carbon footprint

Carbon footprint label - lifecycle CO2e per functional unit and performance class

Extinguishing agent

Fire class D
Class D fire extinguisherdry sand
4 fields disclosed
1 field hidden

Supply Chain

Overview of supply chain due diligence, third-party assurances, and indices.

Due diligence report
/api/assets/WdQCa6WBPMsr3dw-bqHzSQ

Third-party assurances

Supply chain indices
Responsible sourcing score: 88
